Package Comparison Chart
Silver Package |
Gold Package |
Platinum Energy Package |
|
|---|---|---|---|
| Eastern White Pine Log Size | 6”x8” per Standard Model | 6”x8” per Standard Model | 8"x8" Upgrade |
| Exterior Windows | ANDERSEN 400 Series Low-E vinyl clad windows per plan High energy efficiency Color - Terratone only |
ANDERSEN 400 Series Low-E vinyl clad double pane windows per plan High energy efficiency Choice of color |
ANDERSEN A Series Low-E Triple Pane, Fibrex® frames, with windows per plan Maximum energy efficiency Choice of color |
| Exterior Glass Doors | Choice of patio doors from ANDERSEN 400 Clad Series includes sliders, French doors, and swingers Color - Terratone only |
Choice of patio doors from ANDERSEN 400 Clad Series includes sliders, French doors, and swingers Choice of color |
Choice of patio doors from ANDERSEN A Series includes sliders, French doors, and swingers Choice of color |
| Exterior 2nd Floor Walls and Upper Walls at Gable Ends | Traditional framing | Traditional framing | Structural Insulated Panels (SIPs) - Standard 6” on Walls and upper Gable, 8” on Roofing (Traditional framing on garage) |
| Roof Construction | Traditional framing | Traditional framing | Structural Insulated Panels (SIPs) (Traditional framing on garage) |
| Roof Gable Overhang | 12” gable overhang, 12”-16” eave overhang | 24” gable overhang, 12”-16” eave overhang | 24” gable overhang 12”-16” eave overhang |
| Porch Ceilings, Fascia & Soffit | Fascia boards and 3/8” rough sawn pine plywood soffits and with vent strips | Fascia boards and 1”x6” White Pine Tongue & Groove for soffits with vent strips | Fascia boards and 1”x6” White Pine Tongue & Groove for soffits with vent strips |
| Handcrafted Logs | Available as separate option at extra charge | Porch posts (8”-14”) approx. diameter and 8”x8” S4S carry beams | Porch posts (8”-14”) approx. diameter and 8”x8” S4S carry beams |
| Blueprints | Final blueprints on pdf, (not sealed by engineer). Includes foundation plan (not sealed by engineer). Up to 5 printed versions available for a fee. | Gold package also includes ENGINEER SEALED final blueprints on pdf. Includes basic Foundation plan (not sealed). Up to 5 printed versions are available for a fee. (NOTE: Additional charges for Illinois, California, Florida and other states that require structural calculations). Also includes RESCheck at no charge. | Platinum package also includes ENGINEER SEALED final blueprints on pdf. Includes basic Foundation plan (not sealed). Up to 5 printed versions are available for a fee. (NOTE: Additional charges for Illinois, California, Florida and other states that require structural calculations). Also includes RESCheck at no charge and HVAC evaluation by engineer, if requested by buyer. |
Note: In several areas of the country, building codes may require the purchase of the Gold or Platinum Energy Package

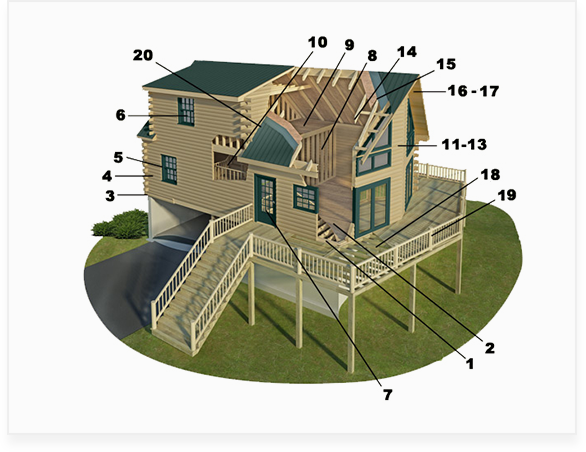

Standard Materials List
- Pressure-treated sill plate; termite shield & skirt flashing
- Conventional first-floor system with bridging and hangers as applicable; includes construction adhesive and 23/32” OSB floor sheathing
- Log skirting (matching log siding profile)
- Eastern White Pine logs – Precut and numbered for window/door openings and applicable corner system (Eastern White Pine; 13 courses for approximate 8′ first-floor ceiling, 8/6 log with notch & pass or optional corner system, to be noted differently on Sales Agreement) with vertical wall posts for inside and angled corners. Designed with Double Tongue & Groove. All Platinum Energy Packages include 8”x8” logs.
- Window and door buck lumber
- Windows provided based on package chosen. All choices are insulated low “E” double-hung, awning, angle bay, casement, and special wood windows per plan with 5/4” x 4” exterior trim; includes snap-in colonial grilles and screens where applicable. See Package Comparison Chart for further information. NOTE: All fixed upper gable glass is to be supplied by owner; 5/4” x 4” trim supplied with materials package. HARDWARE IS NOT INCLUDED.
- Exterior doors provided based on package chosen. See Package Comparison chart for further information. HARDWARE IS NOT INCLUDED.
- Exterior entry door choices include solid wood, stain-grade fiberglass, or steel-insulated exterior doors with 5/4” x 4” exterior trim.
- Interior partition framing with double top plate and single bottom plate; 2×6 framing where necessary for plumbing walls
- Conventional second-floor system with bridging and hangers as applicable; includes construction adhesive and 23/32” OSB floor sheathing.
- Interior stair systems – 2×12 stringers with 2″x4″ temporary treads. Landing framing and sheathing on top level, as needed.
- Gable end framing per plan with gable trim. Platinum Energy Package will include Structural Insulated Panels (SIPs) on upper level.
- 7/16” OSB sheathing and building wrap for exterior stud walls. Platinum Energy Package will utilize Structural Insulated Panels (SIPs) and upgraded moisture control house wrap.
- Matching log siding for gable ends, dormers, and second-story walls (and garage walls, if applicable) with 2” x 4” and 2″ x 6” corner boards for angled corners, PRECUT false log corners for other corners (NOTE: False log corners NOT available for saddlenotch corners)
- Conventionally framed roof system per plan, with sloped hangers for structural ridge areas as applicable. Platinum Energy Package will utilize Structural Insulated Panels (SIPs)
- 19/32” OSB roof sheathing, asphalt impregnated 30 lb synthetic roof underlayment. Platinum Energy Package will utilize Structural Insulated Panels (SIPs) with underlayment.
- Roof gable overhang provided based on package chosen. See Package Comparison chart for further information.
- Fascia boards and soffits provided based on package chosen. See Package Comparison chart for further information.
- Pressure-treated porch open deck, and exterior balcony framing (supports to grade by owner) and 5/4″x6″ bull-nosed decking (per plan); includes bolts for deck to house connections. Deck flashing not included.
- Round handcrafted White Cedar railing systems for porches, open decks, balconies, lofts, and open side(s) of interior stairways. Exterior stairs and stair rails are available as an upgrade order and can be quoted once site grade is known
- Roof valley flashing and dormer step flashing, if applicable (Note: Roof valley flashing not installed by eLoghomes per Construction Service Agreement)
Also included in our Standard Materials List:
- Porch roof framing, sheathing, felt paper, and ceiling
- Accessories including joist hangers
- Double row polyfoam gasket, hardwood dowels, and caulking
- All attached/detached garages are supplied with 2×4 exterior framing, 7/16” OSB sheathing, building wrap, matching log siding, PRECUT false log corners where applicable, and conventionally framed roof system
- Illustrated construction manual and standard details
Each eLoghomes log home is designed to meet at least the minimum standards of the 2018 International Residential Code and will, in many cases, meet local building code requirements. However, some locations may impose other requirements which you must make eLoghomes aware of to ensure that your log home is appropriately modified to meet those specific requirements.
All eLoghomes designs meet a 40 lb. roof/snow load standard. Roof loading can easily be modified for your particular building location with an extra charge (for higher load regions) OR a cost reduction (for lower load areas).
We do not include:
- Exterior stairways to grade
- Fireplace and chimney
- Stonework or other exterior wall materials
- Insulation
- Deck flashing
- Fixed Trapezoidal glass windows
- Pine or other finished flooring
- Gutter systems
- Roof covering, such as asphalt shingles or metal roofing
- Roof ventilation and drip edge
- Garage doors
- Other interior finish materials
- Electrical, plumbing, HVAC, appliances, and cabinets
- List is not all-inclusive. Please contact your eLoghomes planning specialist for additional details
